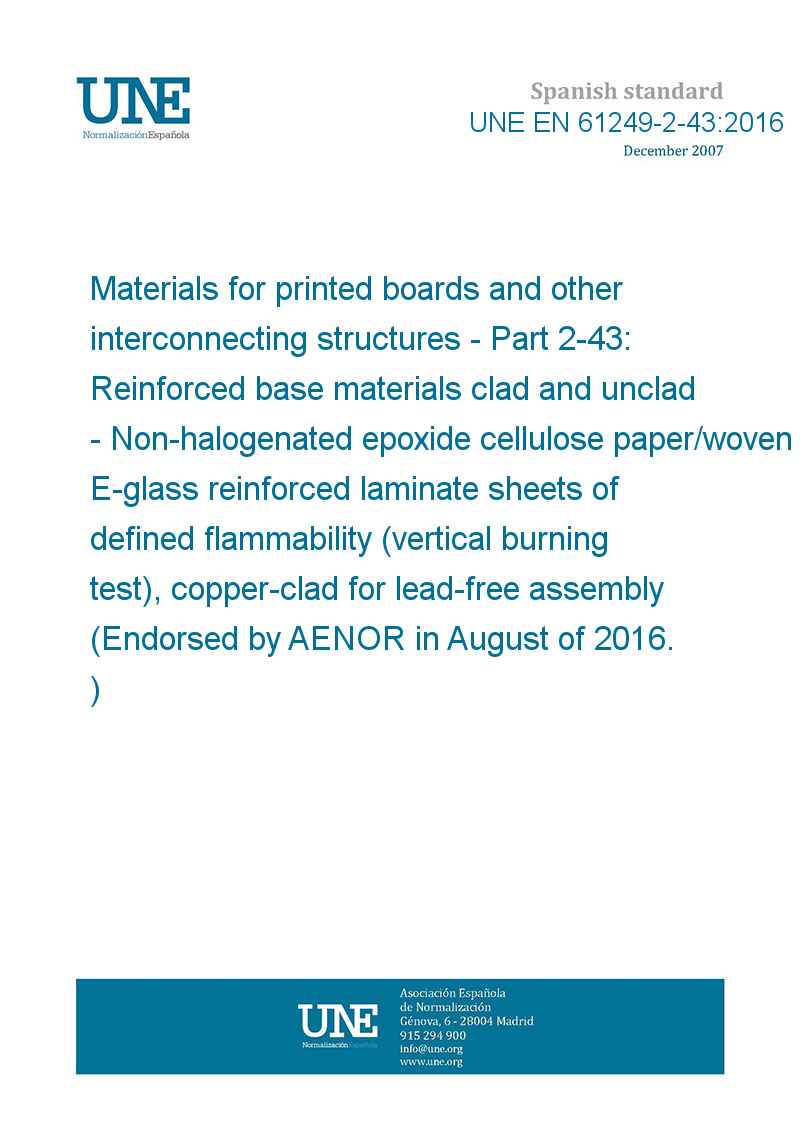

UNE EN 61249-2-43:2016
Materials for printed boards and other interconnecting structures - Part 2-43: Reinforced base materials clad and unclad - Non-halogenated epoxide cellulose paper/woven E-glass reinforced laminate sheets of defined flammability (vertical burning test), copper-clad for lead-free assembly (Endorsed by AENOR in August of 2016.)
Materiales para placas impresas y otras estructuras de interconexión. Parte 2-43: Materiales de base reforzados, con y sin revestimiento. Hojas laminadas reforzadas de vidrio tipo E entrelazado/papel de celulosa con epóxido no halogenado de inflamabilidad definida (ensayo de combustión vertical), con revestimiento de cobre para montajes sin plomo (Ratificada por AENOR en agosto de 2016.)
| Označení normy: | UNE EN 61249-2-43:2016 |
| Počet stran: | 30 |
| Vydáno: | 2016-08-01 |
| Status: | Norma |
UNE EN 61249-2-43:2016
This part of IEC 61249 gives requirements for properties of non-halogen epoxide cellulose paper reinforced core/woven E-glass reinforced surface laminate sheets of defined flammability (vertical burning test), copper-clad for lead-free assembly in thicknesses of 0,60 mm up to 1,70 mm. The flammability rating is achieved through the use of non-halogenated fire retardants reacted as part of the epoxide polymeric structure. The glass transition temperature is defined to be 100 °C minimum. Some property requirements may have several classes of performance. The class desired should be specified on the purchase order, otherwise the default class of material will be supplied.
