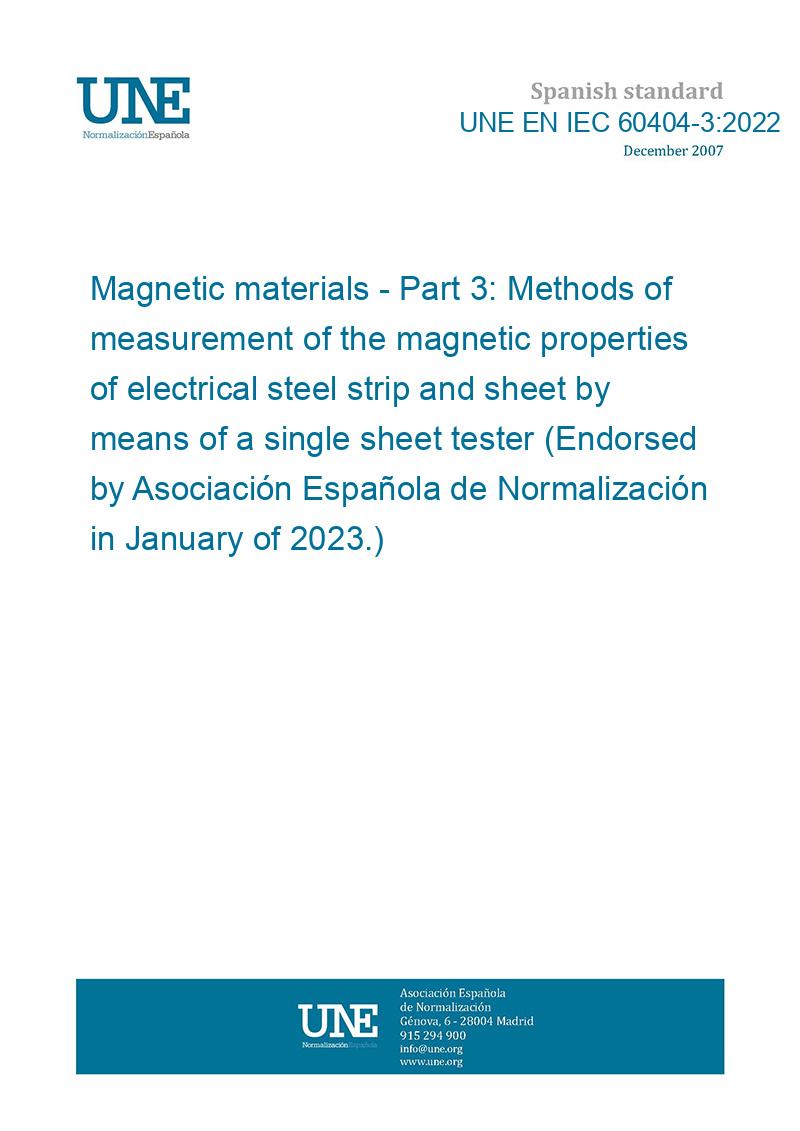

UNE EN IEC 60404-3:2022
Magnetic materials - Part 3: Methods of measurement of the magnetic properties of electrical steel strip and sheet by means of a single sheet tester (Endorsed by Asociación Española de Normalización in January of 2023.)
Materiales magnéticos. Parte 3: Métodos de medida de las propiedades magnéticas de chapas y bandas eléctricas de acero por medio de un comprobador de una sola hoja (Ratificada por la Asociación Española de Normalización en enero de 2023.)
| Označení normy: | UNE EN IEC 60404-3:2022 |
| Počet stran: | 41 |
| Vydáno: | 2023-01-01 |
| Status: | Norma |
UNE EN IEC 60404-3:2022
This part of IEC 60404 is applicable to grain-oriented and non-oriented electrical steel strip and sheet for measurement of AC magnetic properties at power frequencies. The object of this document is to define the general principles and the technical details of the measurement of the magnetic properties of electrical steel strip and sheet by means of a single sheet tester (SST). The single sheet tester is applicable to test specimens obtained from electrical strips and sheets of any grade. The AC magnetic characteristics are determined for sinusoidal induced voltages, for specified peak values of the magnetic polarization, for specific peak values of the magnetic field strength and for a specified frequency. The measurements are made at an ambient temperature of 23 °C ± 5 °C on test specimens which have first been demagnetized. NOTE Throughout this part the quantity "magnetic polarization" is used as defined in IEC 60050-221. In some standards of the IEC 60404 series, the quantity "magnetic flux density" was used.
