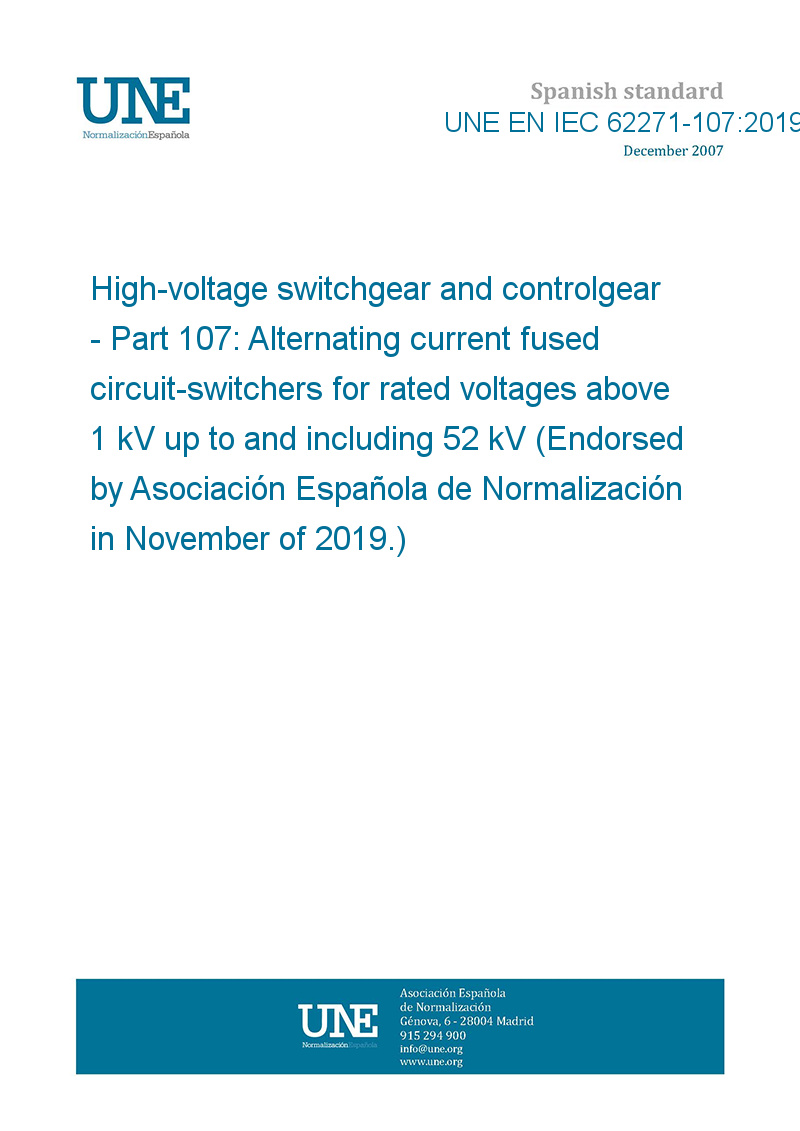

UNE EN IEC 62271-107:2019
High-voltage switchgear and controlgear - Part 107: Alternating current fused circuit-switchers for rated voltages above 1 kV up to and including 52 kV (Endorsed by Asociación Española de Normalización in November of 2019.)
Aparamenta de alta tensión. Parte 107: Interruptores de altas prestaciones (IAP) con fusibles, de corriente alterna para tensiones asignadas superiores a 1 kV e inferiores o iguales a 52 kV. (Ratificada por la Asociación Española de Normalización en noviembre de 2019.)
| Označení normy: | UNE EN IEC 62271-107:2019 |
| Počet stran: | 63 |
| Vydáno: | 2019-11-01 |
| Status: | Norma |
UNE EN IEC 62271-107:2019
This part of IEC 62271 applies to three-pole-operated fused circuit-switchers designed with rated voltages above 1 kV up to and including 52 kV for use on three-phase alternating current systems of either 50 Hz or 60 Hz. They may be designed either as stand-alone devices, or be embedded in some switchgear and controlgear assembly. They are intended to be used for circuits or applications requiring only a normal mechanical and electrical endurance capability. Such applications cover protection of HV/LV transformers for instance, but exclude distribution lines or cables, as well as motor circuits and capacitor bank circuits. Short-circuit conditions with low currents, up to the fused circuit-switcher rated take-over current, are dealt with by supplementary devices (strikers, relays, etc.), properly arranged, tripping the circuit-switcher. Current-limiting fuses are incorporated in order to ensure that the short-circuit breaking capacity of the device is above that of the circuit-switcher alone. NOTE 1 In this standard the term "fuse" is used to designate either the fuse or the fuse-link where the general meaning of the text does not result in ambiguity. NOTE 2 Other circuit-switchers exist; see reference [1]1. Devices that require a dependent manual operation are not covered by this standard.
