Current revisionPublished date: 01.04.1999

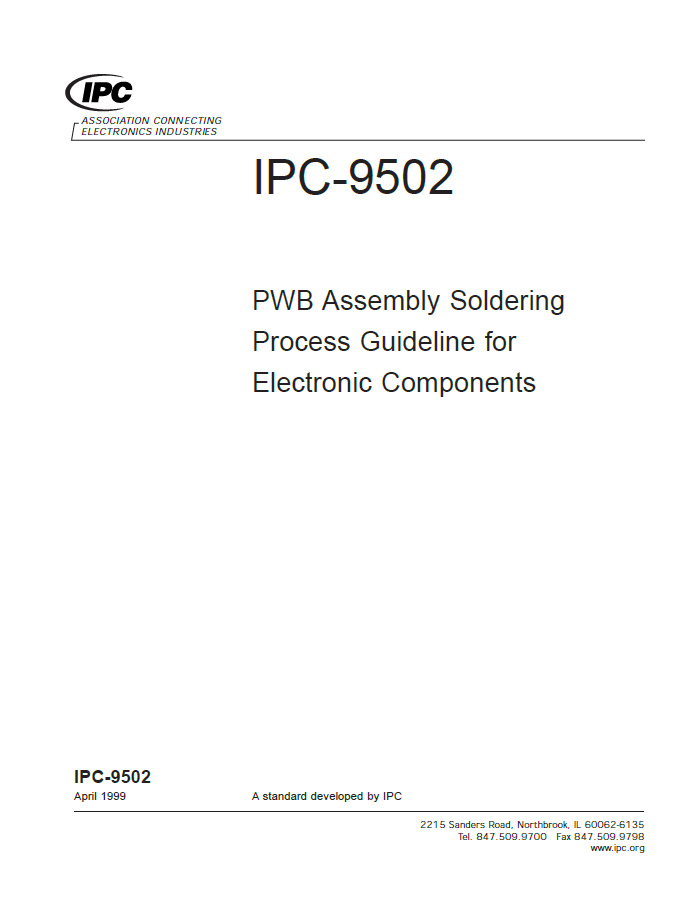

IPC-9502 - Standard Only
PWB Assembly Soldering Process Guideline for Electronic Components
Format
Availability
Price and currency
English Secure PDF
Immediate download
Non-printable
95.10 €
English Hardcopy
10-14 dní
142.64 €
View table of Contents
| Standard Number: | IPC-9502 - Standard Only |
| Published date: | 01.04.1999 |
| DOD Adopted: | No |
| ANSI Approved: | No |
| Pages (English): | 25 |
DESCRIPTION
This document describes the manufacturing solder process limits that components subjected to IPC-9501, IPC-9504 and IPC/JEDEC J-STD-020 would survive. It does not include optimum conditions for assembly, but provides guidelines to ensure components are not damaged. This document applies to both surface-mount (SM) and through-hole (TH) components that are wave soldered, reflowed or hand soldered. This document is intended to complement other industry documents. Note: This document does not address the increased temperature requirements of lead-free solders.
