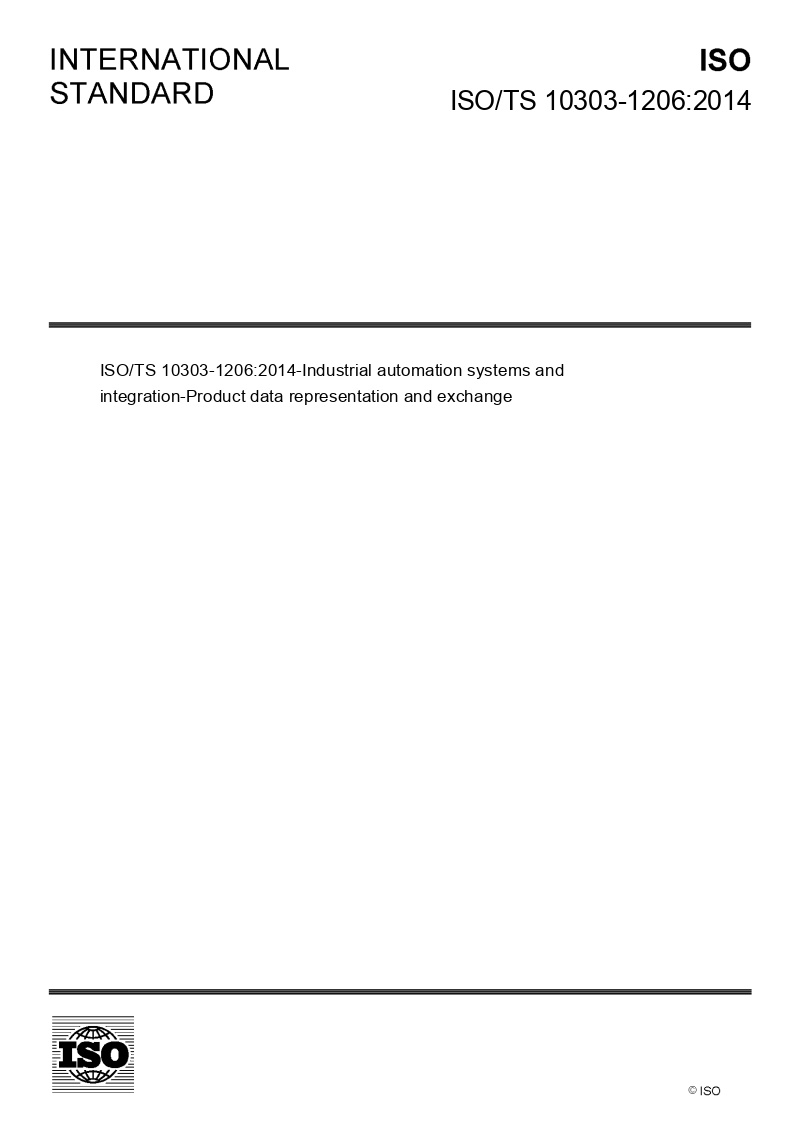

ISO/TS 10303-1206:2014

ISO/TS 10303-1206:2014-02 specifies the application module for Draughting annotation. The following are within the scope of ISO/TS 10303-1206:2014-02: items within the scope of application interpreted construct "Draughting annotation", ISO 10303-504: the presentation of non-shape product data depicted by two-dimensional or planar three-dimensional annotation; the structures for representing the presentation characteristics of annotation;the structures for representing subfigures and symbols; the structures for representing externally defined symbols and presentation characteristics;pre-defined symbols and presentation characteristics. the explicit definition of a patch, or assembly of patches, of colour, shading or texture by reference to: position and orientation, a text string, and a style for presenting a text string;a position and a style for presenting a point;a curve and a style for presenting a curve;boundary curves for a filled area, and a style for presenting a filled area; items within the scope of application module Draughting element, ISO/TS 10303-1310.
