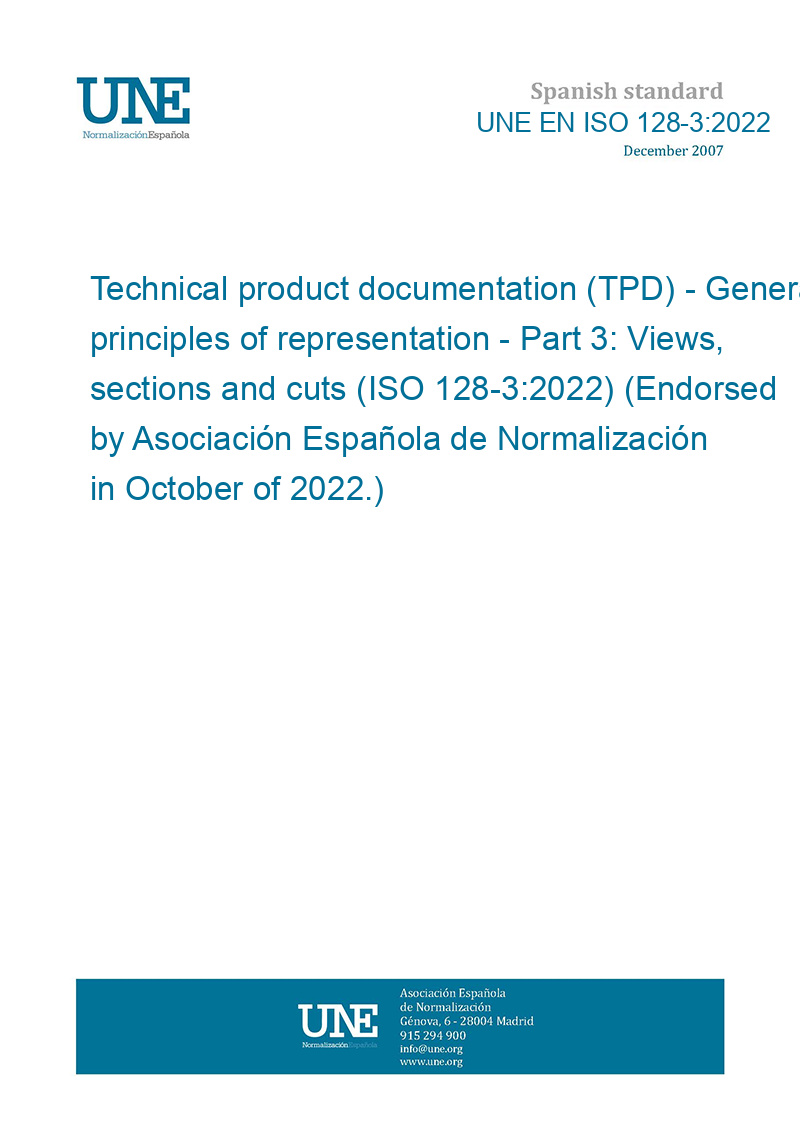

UNE EN ISO 128-3:2022
Technical product documentation (TPD) - General principles of representation - Part 3: Views, sections and cuts (ISO 128-3:2022) (Endorsed by Asociación Española de Normalización in October of 2022.)
Documentación técnica de productos (TPD). Principios generales de representación. Parte 3: Vistas, secciones y cortes. (ISO 128-3:2022) (Ratificada por la Asociación Española de Normalización en octubre de 2022.)
| Označení normy: | UNE EN ISO 128-3:2022 |
| Počet stran: | 59 |
| Vydáno: | 2022-10-01 |
| Status: | Norma |
UNE EN ISO 128-3:2022
This document specifies the general principles for presenting views, sections and cuts applicable to various kinds of technical drawings (e.g. mechanical, electrical, architectural, civil engineering), following the orthographic projection methods specified in ISO 5456-2. Views and sections for shipbuilding technical drawings are discussed in ISO 128-15. Views and sections for 3D models are discussed in ISO 16792. Attention has also been given in this document to the requirements of reproduction, including microcopying in accordance with ISO 6428.
