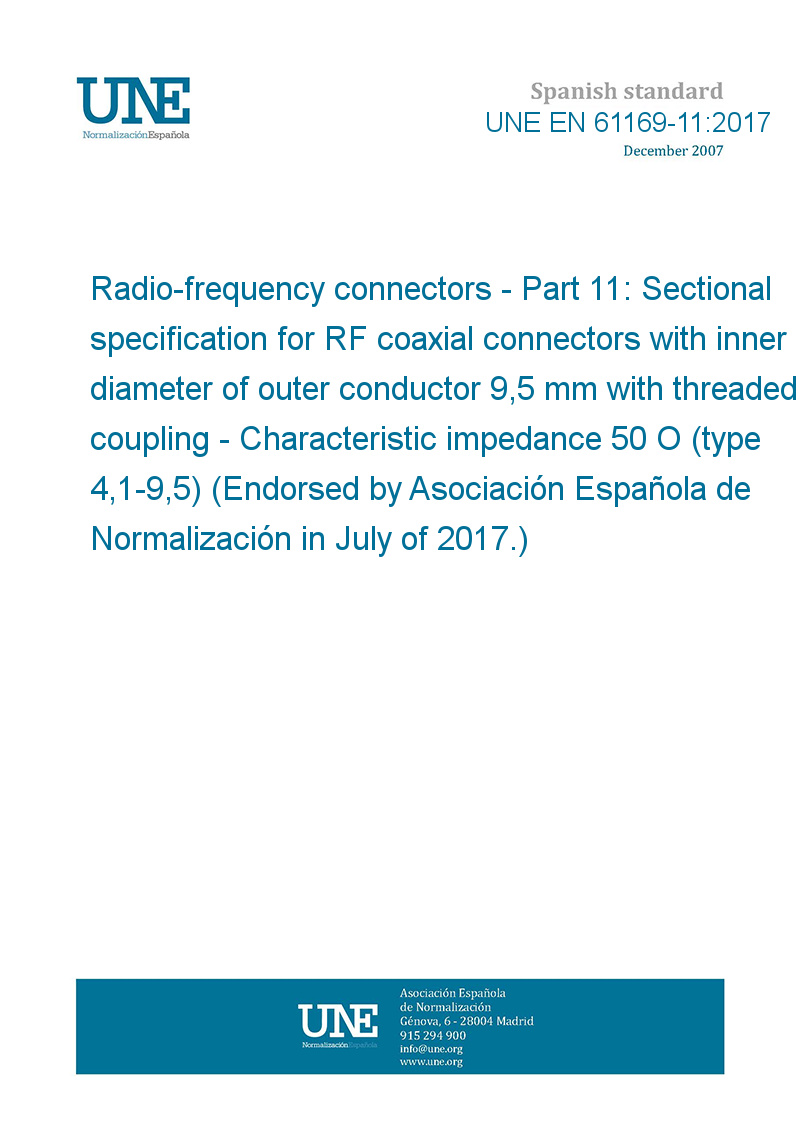

UNE EN 61169-11:2017
Radio-frequency connectors - Part 11: Sectional specification for RF coaxial connectors with inner diameter of outer conductor 9,5 mm with threaded coupling - Characteristic impedance 50 O (type 4,1-9,5) (Endorsed by Asociación Española de Normalización in July of 2017.)
Conectores de radiofrecuencia. Parte 11: Especificación particular para los conectores coaxiales de radiofrecuencia con diámetro interior del conductor exterior de 9,5 mm con acoplamiento roscado. Impedancia característica 50 ohmios (Tipo 4.1-9.5). (Ratificada por la Asociación Española de Normalización en julio de 2017.)
| Označení normy: | UNE EN 61169-11:2017 |
| Počet stran: | 33 |
| Vydáno: | 2017-07-01 |
| Status: | Norma |
UNE EN 61169-11:2017
This part of IEC 61169, which is a sectional specification (SS), provides information and rules for the preparation of detail specifications (DS) for RF coaxial connectors with threaded coupling, typically for use in 50 © cable networks (4.1-9.5). It prescribes mating face dimensions for general purpose connectors - grade 2, dimensional details of standard test connectors-grade 0, gauging information and tests selected from IEC 61169-1, applicable to all detail specifications relating to series 4.1-9.5 RF connectors. This specification indicates recommended performance characteristics to be considered when writing a detail specification and it covers test schedules and inspection requirements for assessment levels M and H. The 4.1-9.5 series RF coaxial connectors with nominal impedance 50© are threaded coupling units which are used with all kinds of RF cables and microstrips in microwave transmission system. And the working frequency is up to 14GHz. Note: Metric dimension are original dimensions. All undimensioned pictorial configurations are for reference purpose only.
