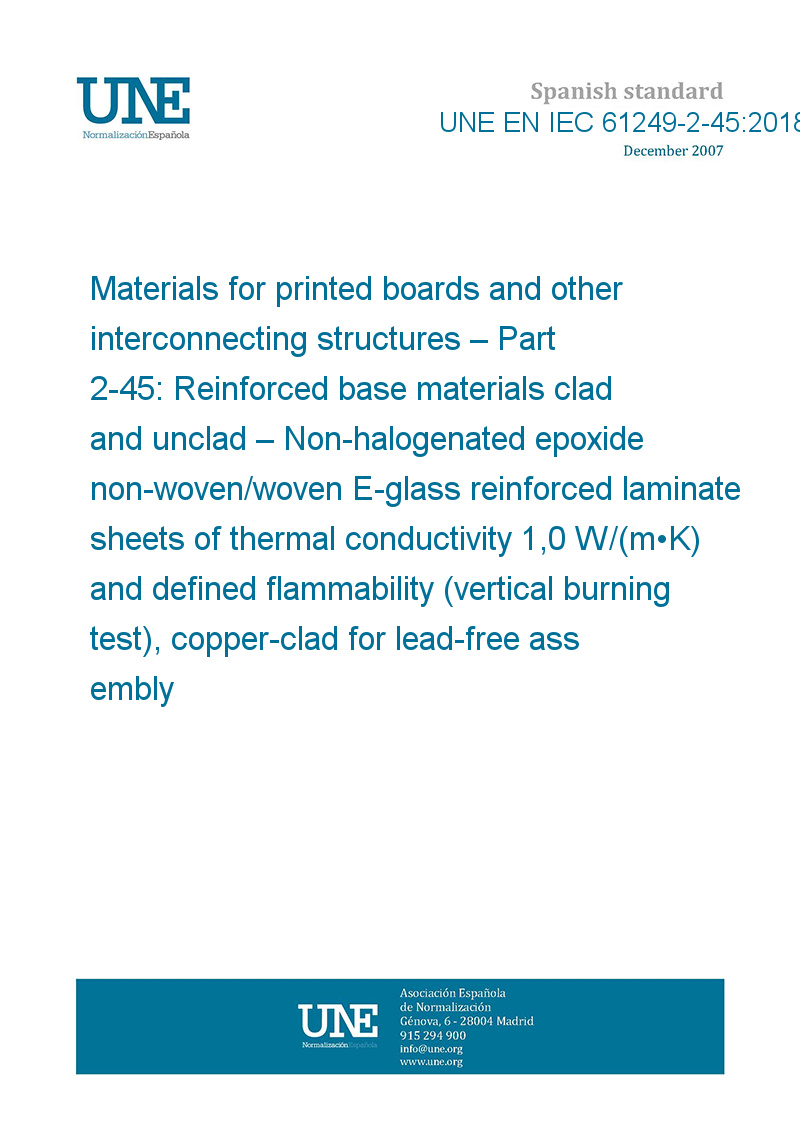

UNE EN IEC 61249-2-45:2018
Materials for printed boards and other interconnecting structures – Part 2-45: Reinforced base materials clad and unclad – Non-halogenated epoxide non-woven/woven E-glass reinforced laminate sheets of thermal conductivity 1,0 W/(m•K) and defined flammability (vertical burning test), copper-clad for lead-free assembly
Materiales para placas impresas y otras estructuras de interconexión. Parte 2-45: Materiales de base reforzados, con y sin revestimiento. Hojas laminadas reforzadas de vidrio tipo E entrelazado/no entrelazado con epóxido no halogenado de conductividad térmica (1.0 W/m K) e inflamabilidad definida (ensayo de combustión vertical), con revestimiento de cobre para montajes sin plomo. (Ratificada por la Asociación Española de Normalización en mayo de 2018.)
| Označení normy: | UNE EN IEC 61249-2-45:2018 |
| Počet stran: | 32 |
| Vydáno: | 2018-05-01 |
| Status: | Norma |
UNE EN IEC 61249-2-45:2018
This part of IEC 61249 gives requirements for properties of non-halogenated epoxide non woven reinforced core/woven E-glass reinforced surface laminate sheets of thermal conductivity and defined flammability (vertical burning test), copper-clad for lead-free assembly in thicknesses of 0,60 mm up to 1,70 mm. The flammability rating is achieved through the use of non-halogenated fire retardants reacted as part of the epoxide polymeric structure. The glass transition temperature is defined to be 105 °C minimum. Thermal Conductivity is defined to be(1,0±0,15)W/ m" K. Some property requirements may have several classes of performance. The class desired should be specified on the purchase order, otherwise the default class of material will be supplied.
