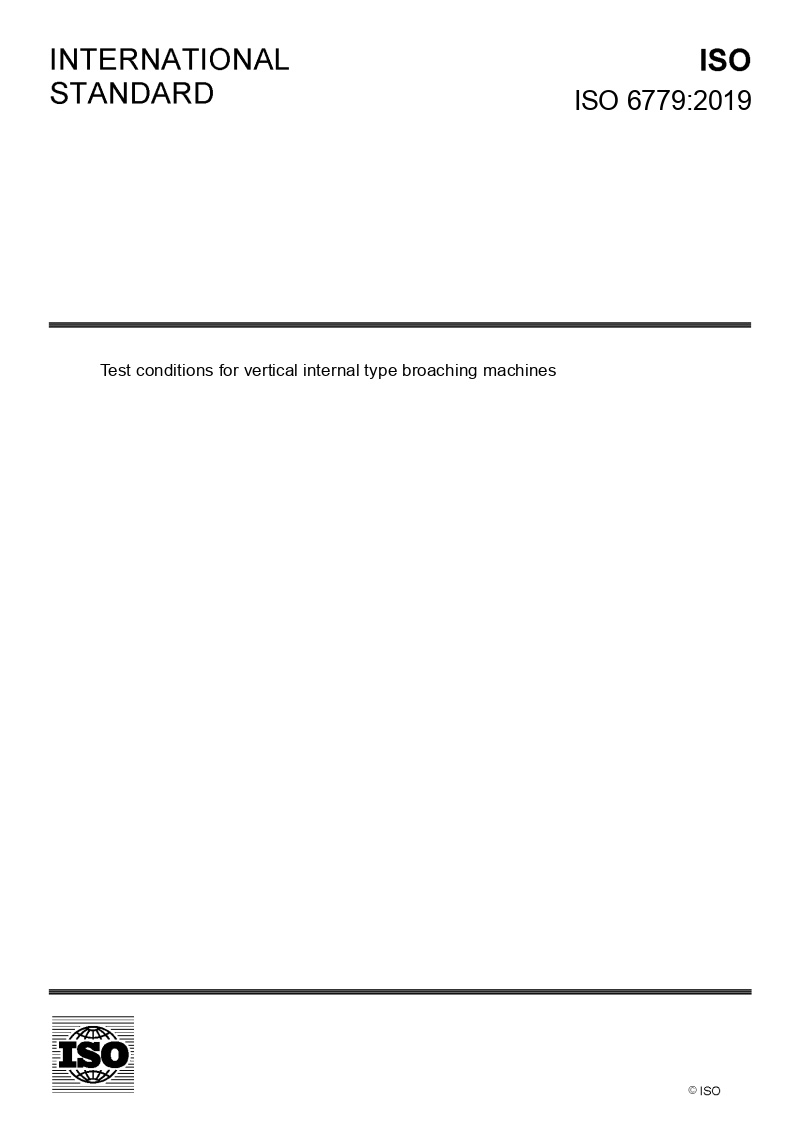

ISO 6779

This document specifies, with reference to ISO 230‑1, the geometric tests on vertical internal type broaching machines with vertical Z-axis providing the main cutting motion. It also specifies the applicable tolerances corresponding to the tests mentioned above for normal-accuracy vertical internal type broaching machines. This document explains concepts or configurations and common features of vertical internal type broaching machines. It also provides related terminology and designation of axes. This document deals only with the verification of the accuracy of the broaching machine. It does not apply to the operational testing of the machine (e.g. vibration, abnormal noise, stick-slip motion of components), nor to machine characteristics (e.g. speeds, feeds) as such checks are generally carried out before testing the accuracy.
