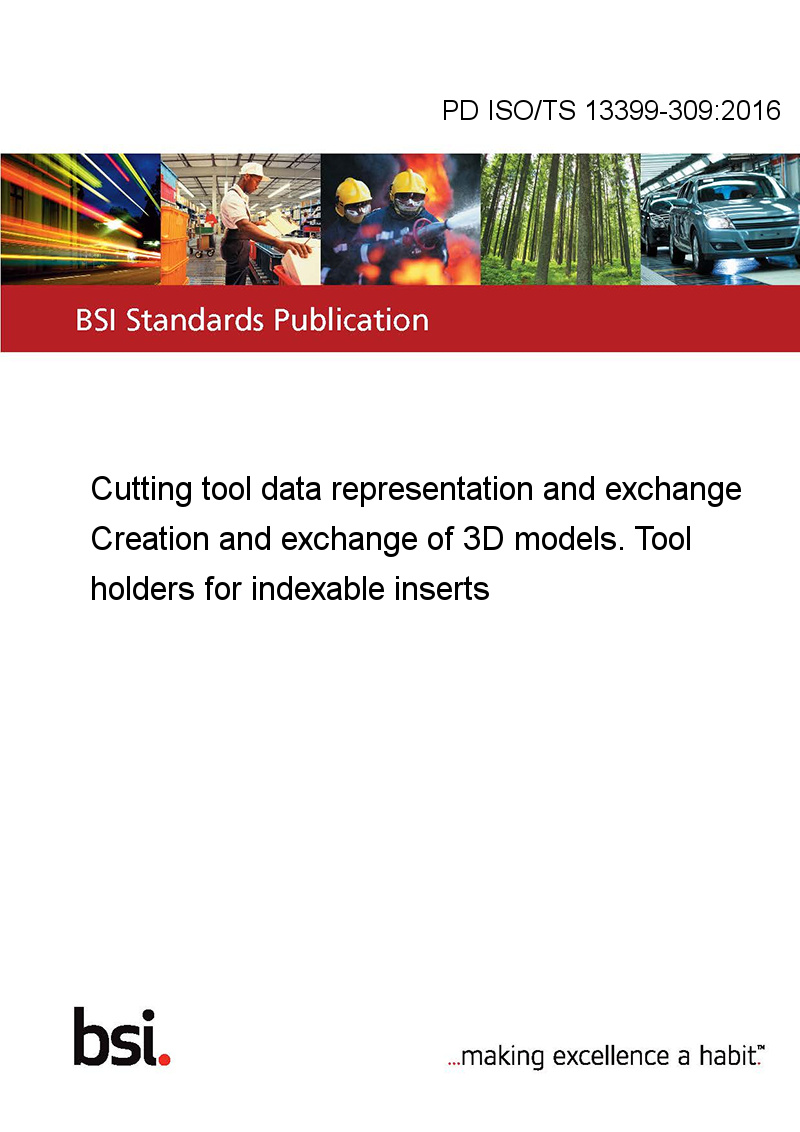

PD ISO/TS 13399-309:2016

This standard PD ISO/TS 13399-309:2016 Cutting tool data representation and exchange is classified in these ICS categories:

• 25.100.01 Cutting tools in general
• 35.240.50 IT applications in industry

This part of ISO/TS 13399 specifies a concept for the design of turning tools for indexable inserts, together with the usage of the related properties and domains of values.

This part of ISO/TS 13399 specifies a common way of designing simplified models that contain the following:

• definitions and identifications of the design features of turning tools for indexable inserts, with an association to the descriptive properties and dimensions;

• definition and identification of the 3D model internal structure that represents the features and the properties of turning tools for indexable inserts.

The following are outside the scope of this part of ISO/TS 13399:

• applications where these standard data may be stored or referenced;

• concept of 3D models for cutting tools;

• concept of 3D models for cutting items;

• concept of 3D models for other tool items not being described in the scope of this part of ISO/TS 13399;

• concept of 3D models for adaptive items;

• concept of 3D models for assembly items and auxiliary items.
