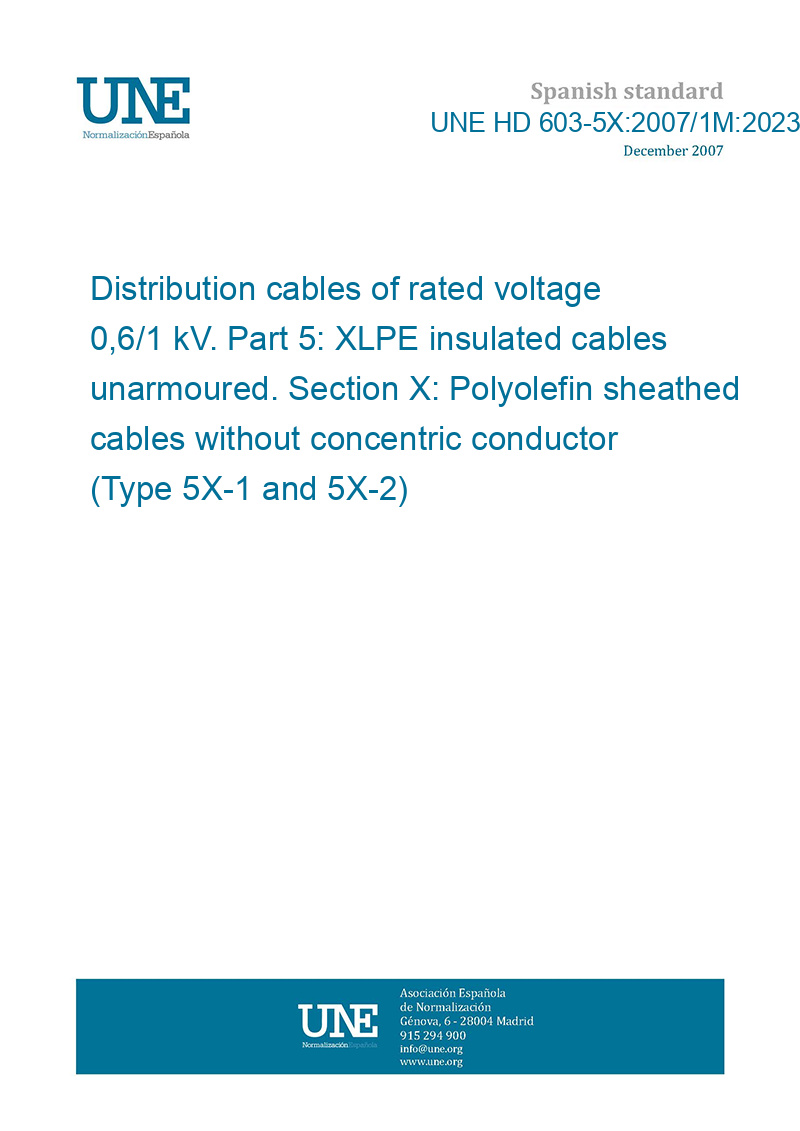

UNE HD 603-5X:2007/1M:2023
Distribution cables of rated voltage 0,6/1 kV. Part 5: XLPE insulated cables unarmoured. Section X: Polyolefin sheathed cables without concentric conductor (Type 5X-1 and 5X-2)
Cables de distribución de tensión asignada 0,6 / 1kV. Parte 5: Cables con aislamiento de XLPE, sin armadura. Sección X: Cables sin conductor concéntrico y con cubierta de poliolefina (Tipo 5X-1 y 5X-2).
| Označení normy: | UNE HD 603-5X:2007/1M:2023 |
| Počet stran: | 18 |
| Vydáno: | 2023-12-27 |
| Status: | Norma |
UNE HD 603-5X:2007/1M:2023
This standard specifies the construction, dimensions and test requirements of un-armoured power cables with XLPE insulation and with circular aluminium conductors in single core cables for rated voltage (U) of 1 kV for fixed installations. The sheathing material shall consist of polyolefin. This standard includes two types of cables: - Type 5X-1: Cable with a polyolefin compound sheath with low halogen content and special properties against reaction to fire. The minimum fire reaction class is Eca - Type 5X-2: Cable with a polyolefin compound sheath with low halogen content and special properties against reaction to fire. The minimum fire reaction class is Cca-s1b,d2,a1.
